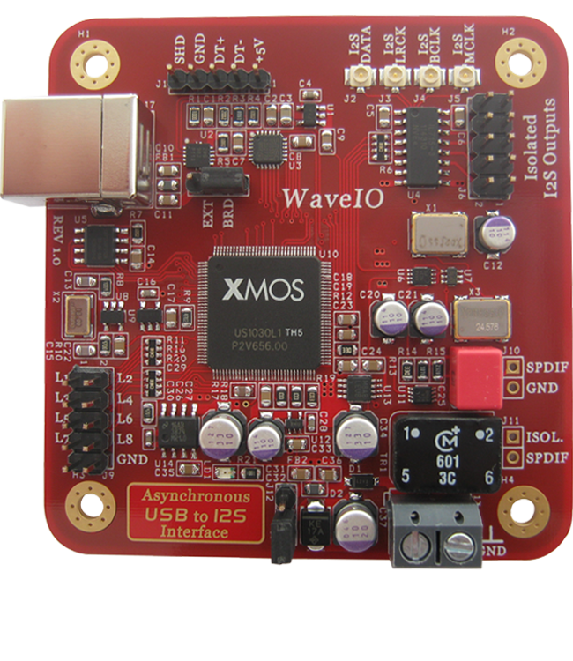

WaveIO card a high performance USB-to-I2S bridge
USB אסינכרוני באיכות גבוהה מ USB ל spdif או I2S
עובד מכניסת USB אבל הכי טוב לחבר אותו לספק לינארי 5V
מכל מה שניסיתי m2tech ועוד כמה , הוא היה הטוב ביותר.
290 מחיר סופי.
https://luckit.bizדויד
0545307711
Asynchronous USB interface:
Bit perfect audio streaming from the USB host (optimized for playback)
USB Audio Class 2.0 support with fall-back to USB Audio Class 1.0
Low latency (round trip as low as 3miliseconds)
16 to 32 Bit-transparent reproduction
44.1 to 384 kHz standard sample rates supported
Option for self- or USB bus-powered applications
Driver Support:
No drivers needed for MAC OS version 10.6.4 and above
No driver installation required for Linux with UAC2 compliant kernel
ASIO/KS/WASAPI/Direct Sound drivers for Windows 7 to 10 (32 and 64 bit)
Fully featured genuine Thesycon driver package with NO periodic beeps
We do NOT offer XMOS driver packages with limited functionality – as per this document
Native DSD driver support and other features available only to genuine Thesycon packages!
Latest Windows drivers for WaveIO is: v5.00.0.
USB and digital audio outputs:
Mechanically enhanced gold plated USB-B connector
Second multiplexed USB data input port available for off-board connection
Isolated I2S output using Giant Magneto Resistive (GMR) isolators from NVE
Non-isolated I2S port by means of 6GHz U.FL. mini BNC sockets
Two 75Ω isolated and non-isolated SPDIF outputs
All I2S and S/PDIF outputs can work in parallel
User interface and signaling:
LEDs for sample rate display (44.1, 48, 88.2, 96, 176.4, 192, 352.8 and 384 kHz),
“Host Active” signal available when card is plugged in and recognized by the host
“Audio Stream” output is enabled when there’s streaming over USB Bus (music playing)
Green power-on LED
Hardware and layout:
4-layer gold-plated PCB with 1/2/2/1 oz copper thickness
Two 70µm copper layers are used for uninterrupted GND / GND & PWR rails
Careful layout to preserve signal’s integrity and keep the noise to minimum levels
Seven linear low-noise regulators bypassed by extensive decoupling networks
There are NO SMPS regulators present on this board
Three LP5900 LDOs (6.5µVrms) powers the oscillators & surrounding sensitive logic
High quality parts including OsCON SVP electrolytics & NP0/C0G caps
Two ultra-low phase noise japanese made oscillators (NDK – NZ2520SD type)
WaveIO is the first Asynchronous USB interface for Do-It-Yourself (DIY) market – and not only – adopting the NDKs famous NZ2520SD oscillators, starting back in 2012 year
We are offering the NZ2520SDA clock upgrade option for WaveIO
