Technical Specifications
Line-level output 1 pair RCA/phono sockets
Output voltage 2 Vrms

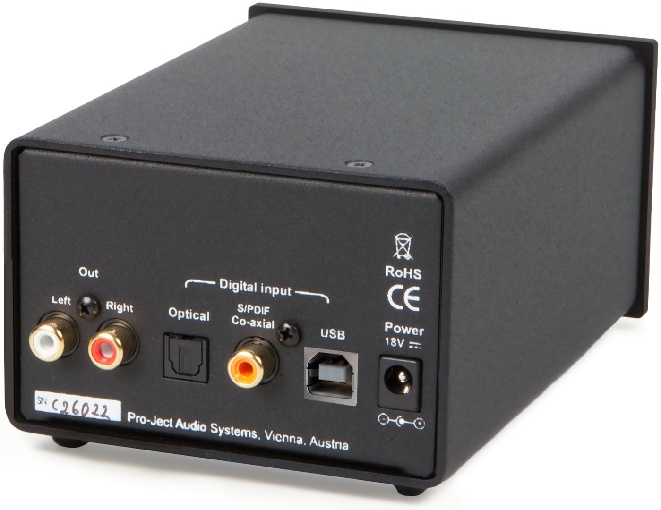

Digital outputs 1 x coaxial (S/PDIF), 1 x optical (TOSlink® ), 1 x USB (B socket)
USB input digital serial data protocol USB 2.0
THD <0,01%
Operating systems Windows XP® , Windows Vista® , Windows 7® , Windows 8® , Mac OS®
D/A converter Burr Brown PCM1792. 24 Bit / 192 kHz, 8-fach Oversampling
Supported audio format PCM (LPCM), DoP (DSD over PCM), No support for formats like Dolby® Digital or DTS™
Sampling rates
Coaxial input 44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,2 kHz und 192 kHz
USB input 44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,2 kHz und 192 kHz
Optical input 32 kHz, 44,1 kHz, 48 kHz, 88,2 kHz und 96 kHz
Outboard power supply 18 V / 500 mA DC; suitable for your country's mains supply
Power consumption 350 mA DC, <1W in Stand-By
Dimensions W x H x D with sockets 103 x 72 x 150 mm
Weight 1.010 g without power supply
