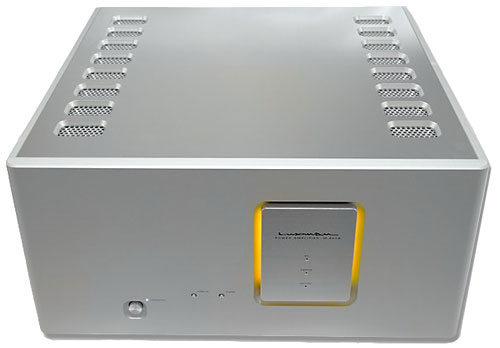

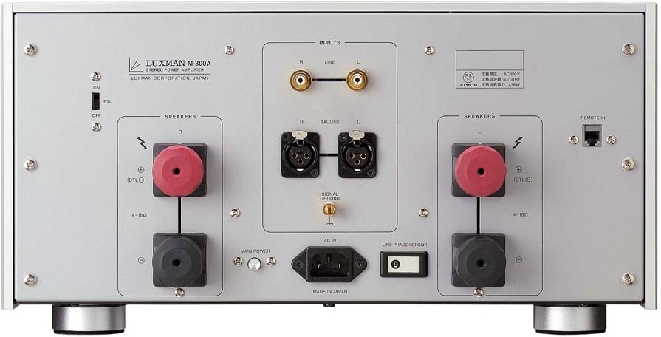

Description: Solid-state, stereo power amplifier with the output stage biased into class-A, bridgeable for mono operation. Inputs: 1 pair each, unbalanced (RCA) and balanced (XLR). Outputs: 1 pair speaker binding posts. Rated output power: 60Wpc, both channels driven into 8 ohms (17.8dBW); 120Wpc, both channels driven into 4 ohms (17.8dBW); 240Wpc into 2 ohms (17.8dBW), 480Wpc into 1 ohm (17.8dBW); 240W bridged into 8 ohms (23.8dBW). Frequency response: 20Hz–20kHz, +0/–0.2dB; DC–130kHz, +0/–3dB. Input impedance: 67k ohms balanced, 51k ohms unbalanced. Input sensitivity: 773mV/60W (8 ohms). Voltage gain: 29dB. Signal/noise (IHF-A): 117dB. Power consumption: 492W (rated power).
Dimensions: 17.25" (440mm) W by 8.8" (225mm) H by 19" (490mm) D. Weight: 107 lbs (48.6kg) net
