SPECIFICATIONS
Input format
USB: PCM, DSD (DoP v1.1, ASIO)
Coaxial, AES/EBU: PCM, DSD (DoP v1.1)
Supported sampling frequency
USB: Max. 768kHz (PCM) / Max. 22.6MHz (DSD)
Coaxial, AES/EBU: Max. 192kHz (PCM) / Max. 2.8MHz (DSD64 DoP v1.1)
PCM quantization bit rate
USB: 16bit, 24bit, 32bit
Coaxial, AES/EBU: 16bit, 24bit
USB profile
USB 2.0, USB Audio 2.0

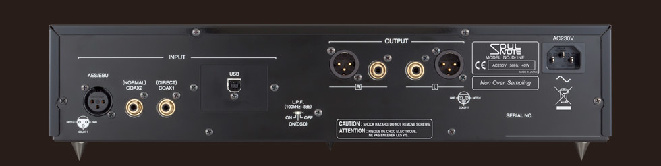

Digital input
USB (Typ B), coaxial x2 (SPDIF), AES/EBU
Analog output
XLR x1, Cinch x1
Analog Output level
XLR: 5,6 Vrms
RCA: 2,8 Vrms
Frequency characteristic
2Hz to 120kHz (+0/-1dB）
S/N ratio
110dB
Total harmonic distortion
0,003％
Analog filter
Two-dimensional passive
Power voltage
230V AC 50Hz
Power consumption
40W
Maximum external dimensions
Main unit: 456(B)×109(H)×379(T)mm
Weight
10kg
