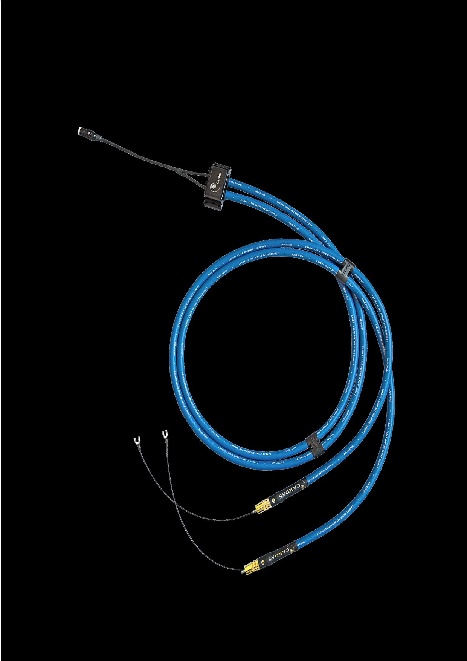

Cardas Clear Beyond Phono X2

זמין באורכים מ חצי מטר ומעלה

Performance
Clear Beyond Dual Phono has been a “secret menu item” for a while. We were asked to
prepare a pair of Clear Beyond Interconnects for use with a 5-pin DIN tonearm
in an extreme analog system being shown at the Munich High End Show.
Then word spread, and those in the know fell in love with it. Now Clear
Beyond Dual Phono has escaped into the marketplace.
A single run of Clear Beyond Interconnect, with multiple shields,
and eight 26.5 AWG Matched Propagation Conductors, is a
top performing phono cable. Some vinyl playback systems,
however, benefit from a dual run of interconnects. That’s not
a problem when your turntable has RCA outputs. But if your
tonearm has a DIN connector, you’re typically limited to a
consolidated phono cable.
Custom terminations including Cardas R-DIN and SME 90°
DIN connections are available.
Standard Terminations: Cardas S-DIN to SRCA.
Hand terminated in Bandon, Oregon.
Design/Construction
Conductors: Matched Propagation Kevlar core,
ultra fine Grade 1, 99.9999% pure OFHC copper
with SPN clear coat (Litz), gauge sizes scaled to
Golden Ratio proportions and range from 47 AWG to
39 AWG. Cross-field layer geometry, insulated in ultra
thin extruded PTFE jacket.
Geometry: Star-Quad 4 conductors with anti-static LDPE airtubes
bound with carbon impregnated PTFE tape wrap. Outer
layer uses PTFE air-tubes scaled 1.618 times larger than the
core tubes to suspend the composite shield of tinned copper and
magnet wire away from the signal carrying conductors. Finished in
an ultra soft extruded TPR jacket.
Gauge: 8x26.5 AWG
Outside Diameter: 0.511”/13mm
